You are on the Xporter Server documentation. If you are looking for Xporter Cloud documentation, you can find it in this page.

Xporter for Jira allows you to get the billed hours and attributes from each worklog entry, a field generated by and managed from the Tempo Timesheets add-on.

The steps described here are only required for Tempo Timesheets 8.x.x.


Xporter for Jira integrates with Tempo Timesheets via the Tempo Servlet API and Tempo REST API

Configuration

  1. Get the access token to allow Xporter for Jira to communicate with Tempo Timesheets. (See here for more information.)
    1. Define the access token in your document using the Prop function. The key must be tempo.api.token.
  2. Define Tempo to export Billed hours.
         a.  Go to Tempo Administration -> Fields -> Custom Fields and check the Export billed hours option.

Example

This lists the billed hours by each worklog entry.

${prop(tempo.api.token,f66a8d4f-5b77-44d2-8973-944d643b0235)}
#{for worklogs}
   Author: ${Worklogs[n].Author}
   Comment: ${Worklogs[n].Comment}
   Time Spent: ${Worklogs[n].TimeSpentFormatted}
   Billed hours: ${Worklogs[n].BilledHoursFormatted}
#{end}


This lists the attributes by each worklog entry.

This functionality requires Tempo Timesheets 8.13.1

#{for worklogs}
   Author: ${Worklogs[n].Author}
   Comment: ${Worklogs[n].Comment}
   Time Spent: ${Worklogs[n].TimeSpentFormatted}
   Attribute: ${Worklogs[n].My Attribute Name}
#{end}


Additional configuration

Xporter allows you to define the interval of Worklogs you want to get on your reports.

The only information you will need to add in the template is the date you want to get the work logs.

  1. You are able to define the date from and the date to on your document using the Prop function

    KeyValue
    tempo.api.fromEx.: 2018-01-01
    tempo.api.toEx.: 2018-12-31

Please be aware that both dates should have the following format: "yyyy-MM-dd".

Be aware, the information that will respect this interval will be only custom fields who belongs to the Tempo Timesheets (example: Billable Hours)

${prop(tempo.date.from, 2018-01-01)}
${prop(tempo.date.to, 2018-12-31)}


Iterating over Tempo Worklog entries

Xporter allows you to iterate over tempo log entries and for each log entry it will be possible to export all the fields defined on Tempo. This allows you to create a table that dynamically grows according to the number of existing worklogs. The notation is:

Tempo Fields

Description

Author

The author of the worklog entry

Comment

The comment of the worklog

DateThe date when the worklog is registered
FromThe time when the worklog started
ToThe time when the worklog finished
WorkedThe worked time in seconds
WorkedFormattedThe worked time as displayed on Jira
BillableThe billable time in seconds
BillableFormatted

The billable time as displayed on Jira

RemainingEstimateThe remaining estimated time in seconds
RemainingEstimateFormattedThe remaining estimated time as displayed on Jira
<Atribute Name>The attribute name defined on tempo
Expand to see the sample code
#{for worklogs}
   Author: ${fullname:Worklogs[n].Author}
   Comment: ${Worklogs[n].Comment}
   Date: ${dateformat("dd-MM-yyyy"):Worklogs[n].Date}
   From: ${dateformat(“HH:mm”):Worklogs[n].From}
   To: ${dateformat(“HH:mm”):Worklogs[n].To}
   Worked (Seconds): ${Worklogs[n].Worked}
   Worked: ${Worklogs[n].WorkedFormatted}
   Billable (Seconds): ${Worklogs[n].Billable}
   Billable: ${Worklogs[n].BillableFormatted}
   Remaining estimated (Seconds): ${Worklogs[n].RemainingEstimate}
   Remaining estimated: ${Worklogs[n].RemainingEstimateFormatted}
   Attribute: ${Worklogs[n].My Attribute Name}
#{end}

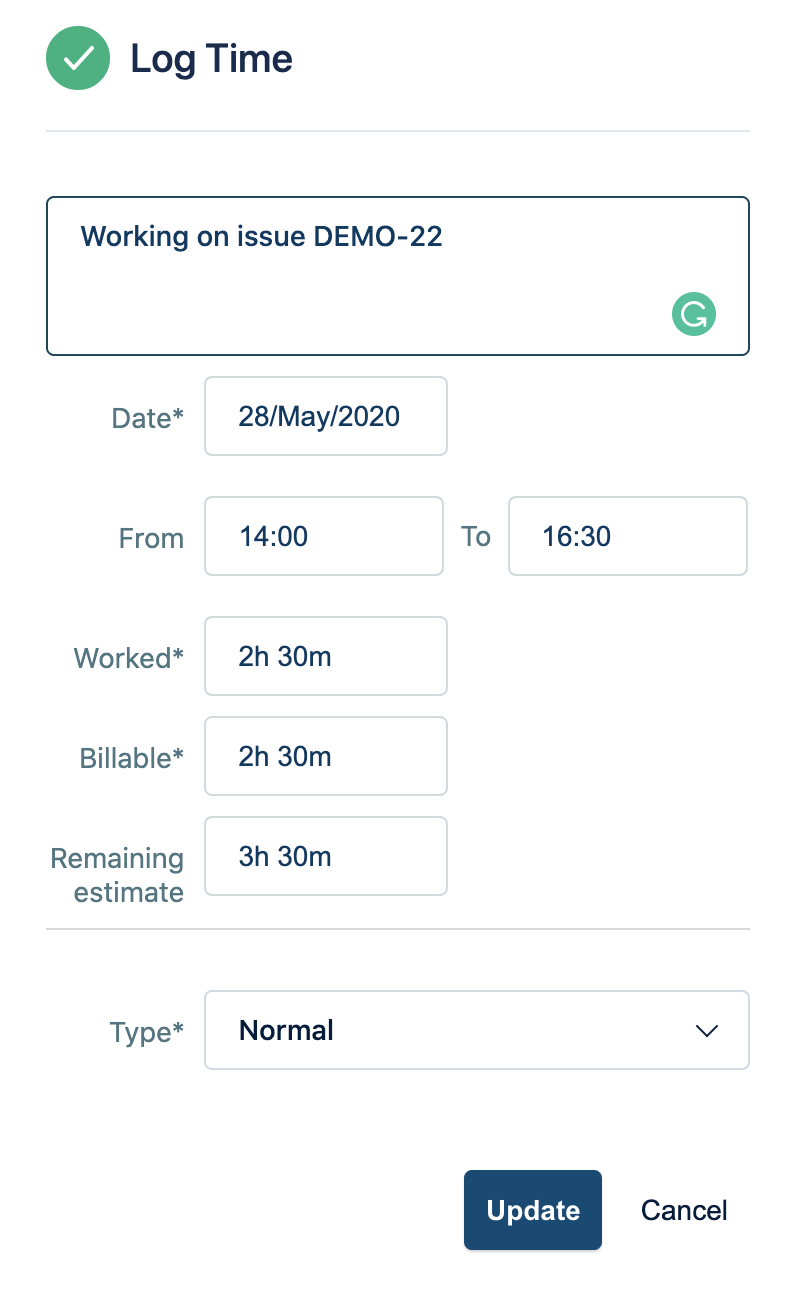

Log Time Example:

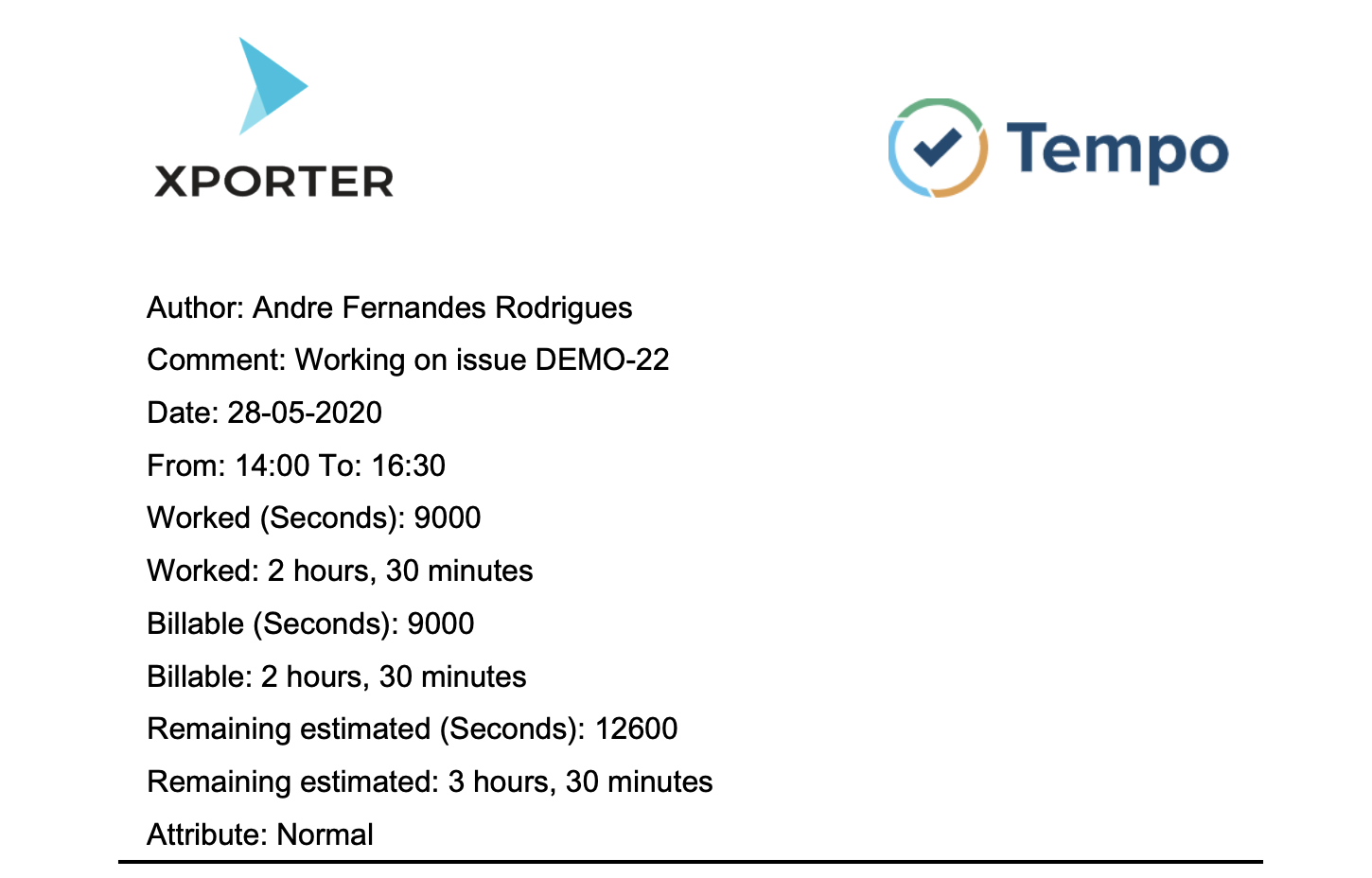

Report generated:

The report generated will have all the tempo information.
Furthermore, the report allows us to export the time as a second or formatted as displayed on JIRA.
